Anterior Communicating Artery Aneurysm Clipping Prev Next

Anterior Communicating Artery Aneurysm Clipping

To contrast the standard clipping procedure for an anterior communicating artery aneurysm with a problematic case in which the aneurysm neck is too large for a standard clip.

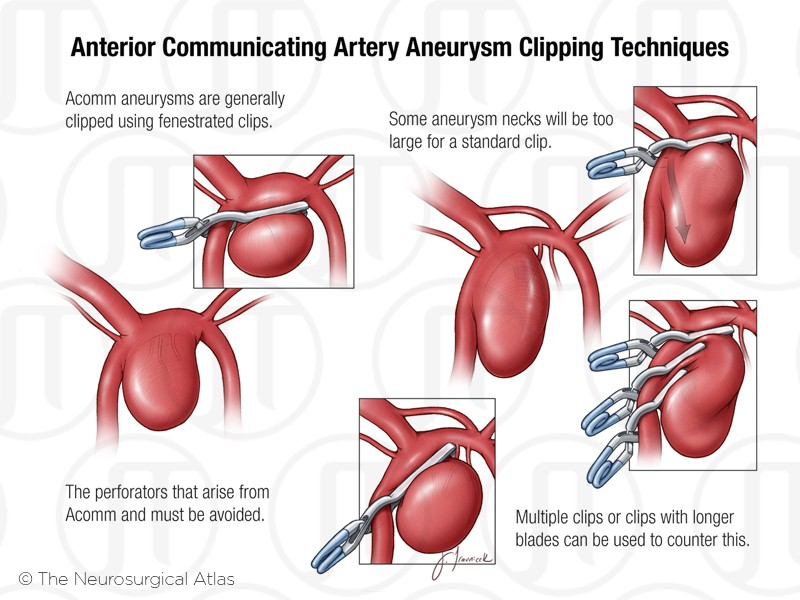

Text in this illustration: Acomm aneurysms are generally clipped using fenestrated clips. The perforators that arise from Acomm must be avoided. Some aneurysm necks will be too large for a standard clip. Multiple clips or clips with longer blades can be used to counter this.

Anatomy in this medical illustration: Anterior cerebral artery section one (A1), Anterior cerebral artery section two (A2), Anterior communicating artery, Recurrent artery of Heubner, Aneurysm, Perforators,
